Description
data sheet: Download(PDF)Do not hesitate to contact us at any time for further information.

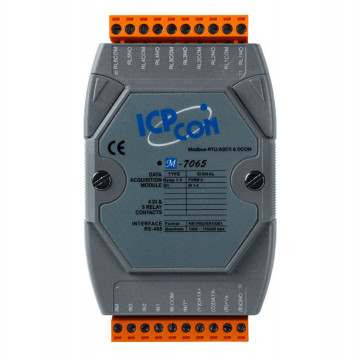

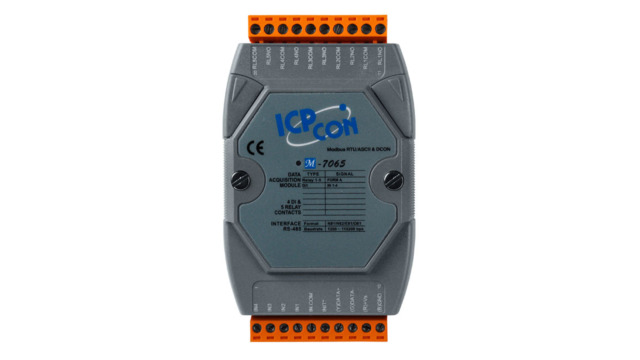

The module M-7065 supports both the Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments.
Specifications
Communication
• interface: RS485
System performance
• input coltage: 10 ~ 30 V DC
Build
• installation option: DIN-Rail
Relay output
• count: 5
• Contact Rating: 5A @ 250V AC, 5A @ 30V DC

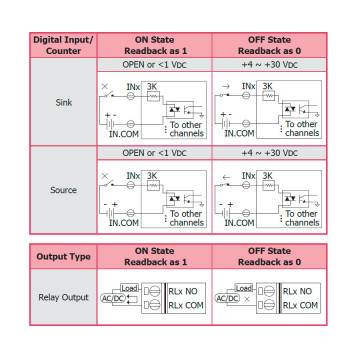

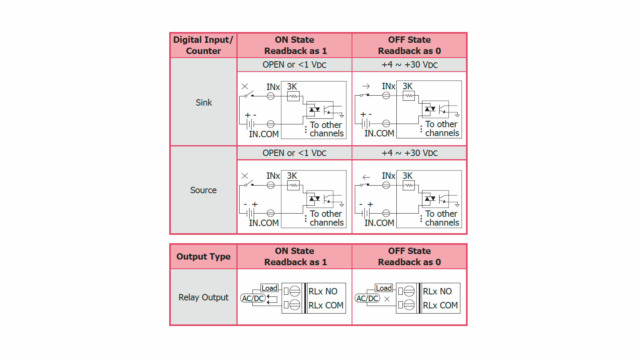

Digital input
• count: 4
• voltage level: +4 ~ 30 VDC
Operating conditions
• temperature: -25 ~ +75°C
