Description
data sheet: Download(PDF)Do not hesitate to contact us at any time for further information.

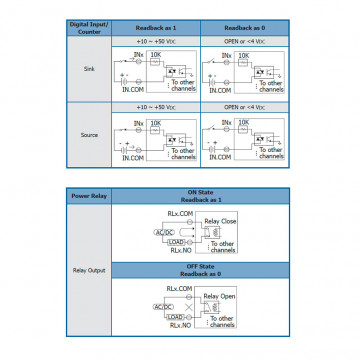

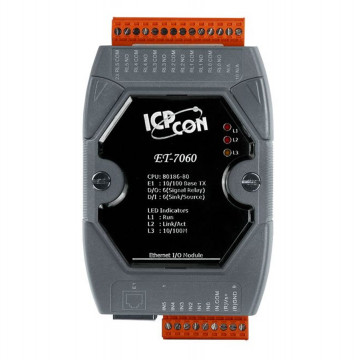

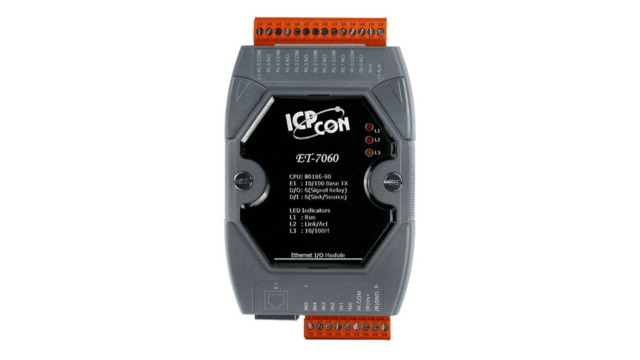

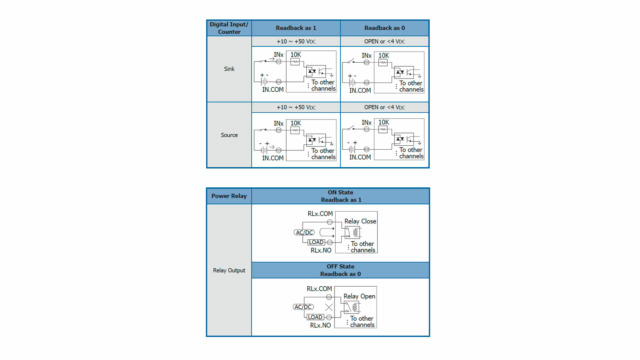

The ET-7060 provides 6 wet contact digital inputs and 6 form A electromechanical relays. It features optical isolation for 3000 VDC of transient overvoltage protection and doesn’t have channel-to-channel isolation.
Each input can be used as a 32-bit counter. The power-on value and safe value of relay are programmable.
Specifications
Overall
• certification: CE, FCC
• dimenstion (w × h × d): 72 × 123 × 33 mm

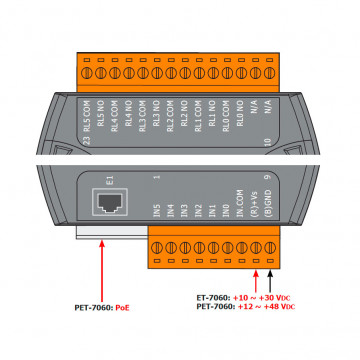

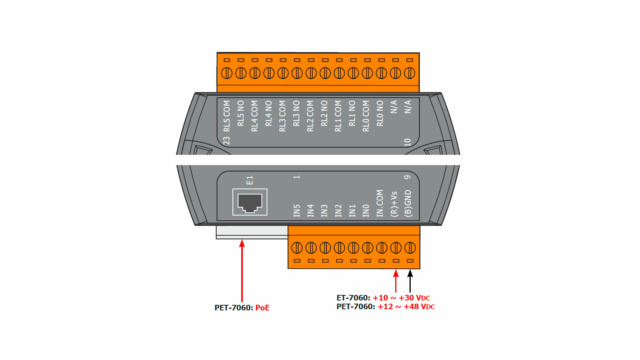

• connections: 1 × RJ45 (LAN), screw terminal block (E/A and power)
• case: ABS
• LEDs: power and communcitation
• installation option: DIN-Rail mount or wall
Communication
• ethernet: 10/100 Mbps, 1.500 Vrms galvanic isolation
• polling and event-driven (TCP/IP)
• modbus/TCP-protocol
• multiple access
• webpages for remote access and monitoring via browser
Input/output
• analog input: 16 Bit ADC, 15,7 Hz
• per channel adjustable measuring rane
• digital input/output, counter, relays
Power supply and operating conditions
• non stabilized voltage: 10 bis 30 V DC (ET-7000), 12 to 48 V DC (PET-7000)
• operating temperature: -25°C … 75°C
• storage temperature: -30°C … 80°C
• humidity: 5% … 90%, non condensation
